Product Summary

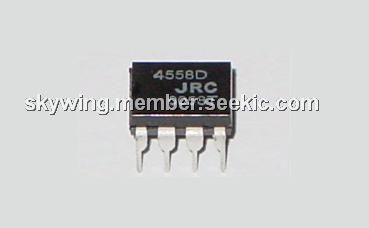

The 4558D is a Op Amp.

Features

Specifications: (1)Common Mode Rejection Ratio (Min): 70 dB; (2)Input Offset Voltage: 6 mV; (3)Input Bias Current (Max): 500 nA; (4)Slew Rate: 1 V/us; (5)Supply Current: 5.7 mA; (6)Maximum Power Dissipation: 500 mW; (7)Maximum Operating Temperature: + 85℃; (8)Minimum Operating Temperature: - 40℃; (9)Package / Case: DIP-8; (10)Packaging: Tube; (11)Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V; (12)Maximum Dual Supply Voltage: +/- 18 V; (13)Minimum Dual Supply Voltage: +/- 4 V; (14)Mounting Style: Through Hole; (15)Standard Pack Qty: 50; (16)Technology: Bipolar; (17)Voltage Gain dB: 100 dB.
