Product Summary

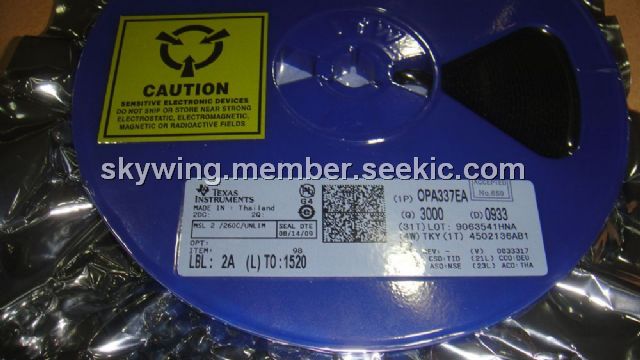

The OPA337EA rail-to-rail output CMOS operational amplifier is designed for low cost and miniature application. Packaged in the new SOT23-8, the OPA337EA is Burr-Brown’s smallest dual op amps. At 1/4 the size of a conventional SO-8 surface mount, it is ideal for space-sensitive applications. OPA337EA provides low bias current, high-speed operation, high open-loop gain, and rail-to-rail output swing.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: 5.5V; (2)Input Voltage: (V–) –0.5V to (V+) +0.5V; (3)Input Current: 10mA; (4)Output Short Circuit: Continuous; (5)Operating Temperature: –55°C to +125°C; (6)Storage Temperature: –55°C to +125°C; (7)Junction Temperature: 150°C; (8)Lead Temperature (soldering, 10s): 300°C.
Features
Features: (1)single-supply operation; (2)rail-to-rail output swing; (3)fet-input: IB = 10pA max; (4)high speed: 3MHz, 1.2V/ms (G = 1); (5)operation from 2.5V to 5.5V; (6)high open-loop gain: 120dB; (7)low quiescent current: 525mA/amp; (8)single and dual versions.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA337EA/250 |
Texas Instruments |
Operational Amplifiers - Op Amps Singly Sup CMOS |
Data Sheet |
|
|
||||||||||||||
|
OPA337EA/250G4 |
Texas Instruments |
Operational Amplifiers - Op Amps Singly Sup CMOS |
Data Sheet |
|
|
||||||||||||||
|
OPA337EA/2K5G4 |
Texas Instruments |
Operational Amplifiers - Op Amps MicroSIZE Sngl-Sply CMOS |
Data Sheet |
|
|
||||||||||||||
|
OPA337EA/2K5 |
Texas Instruments |
Operational Amplifiers - Op Amps MicroSIZE Sngl-Sply CMOS |
Data Sheet |
|
|
||||||||||||||
