Product Summary
The PPD6-48-1515 of PPD-series is a single output DC-DC converter 1.5W ~ 25W, which output power 3 W. While the Nominal input voltage 48 V and Nominal output voltage 1212 V, the withstand voltage of PPD6-48-1515 is Input–output, Input–case: 500VAC for 1 min. What’s more, it’s over current protection, PP15, PP25: Remote on/off control & over voltage protection.
Parametrics
Absolute maximum ratings: (1)Input voltage range: DC5V input: DC4.5 ~ 7.2V, DC12V input: DC8 ~ 16.5V, DC24V input: DC18 ~ 32V, DC48V input: DC32 ~ 63V; (2)Output voltage range: Fixed; (3)Cooling: Convection cooling; (4)Operating ambient temperature: –20 ~ +71°C.
Features
Features: (1)Compact and single output DC-DC converter Ultra-thin profile: 8mm; (2)Operating temperature: –20 ~ +71°C; (3)Isolation between input and output; (4)PP15, PP25: Output voltage variable, on/off control; (5)3 year warranty.

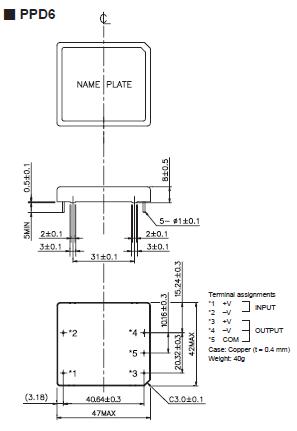

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PPD6-48-1515 |
TDK-Lambda |
DC/DC Converters 6W 15V 0.2A |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PPD6-24-1212 |
TDK-Lambda |
DC/DC Converters 6W 12V 0.25A |
Data Sheet |
Negotiable |
|
||||
|
PPD6-48-1212 |
TDK-Lambda |
DC/DC Converters 6W 12V 0.25A |
Data Sheet |
Negotiable |
|
||||
|
PPD6-48-1515 |
TDK-Lambda |
DC/DC Converters 6W 15V 0.2A |
Data Sheet |
Negotiable |
|
||||
|
PPD6-5-1515 |
TDK-Lambda |
DC/DC Converters 6W 15V 0.2A |
Data Sheet |
Negotiable |
|
||||
|
PPD6-24-1515 |
TDK-Lambda |
DC/DC Converters 6W 15V 0.2A |
Data Sheet |
Negotiable |
|
||||
|
PPD6-12-1515 |
TDK-Lambda |
DC/DC Converters 6W 15V 0.2A |
Data Sheet |
Negotiable |
|
||||
